一、主要用途

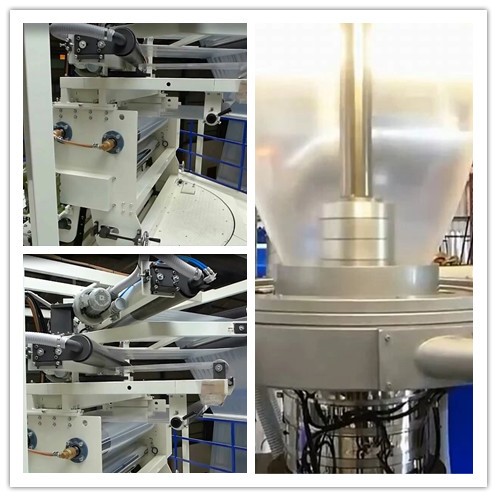

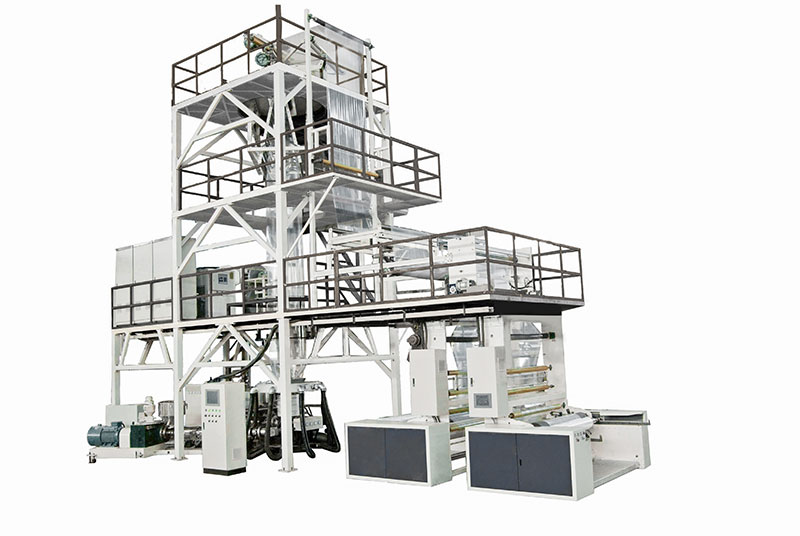

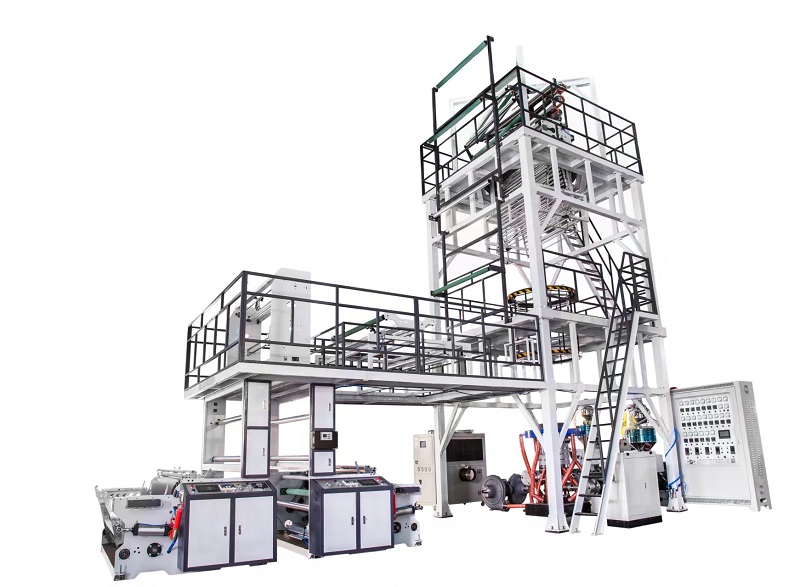

该机组为满足客户对高质量吹膜设备的要求，采用了新型机筒螺杆，精密稳流风环，新型三层共挤内冷模具，水平式上牵引旋转系统，IBC内冷系统，全自动中心/表面/间隙收卷机，计算机集中控制系统等先进技术，具有生产效率高、制品质量高、自动化程度高、操作更简便等优点，可广泛用于高档自粘膜、高透明性包装薄膜等的生产,为你创造客观的经济效益。
二、性能特点
1.我公司吸收国外先进技术，自主研发的新一代全自动多功能收卷机，它具有表面摩擦收卷、表面中心收卷、中心主动收卷三种收卷方式，全面适应各种塑料薄膜的卷取，并具有飞刀切割，自动换卷、卸卷，自动计长等功能。
2.PLC控制系统可在多种收卷模式下工作，自动完成切割、换卷、卸卷动作，大大降低了工人劳动强度和生产成本，提高了生产率。该系统人机界面，触摸屏显示和设置各种参数：温度、螺杆转速、张力、收卷压力、膜卷卷径，长度等，自动化程度更高。
3.自主研发新型机筒螺杆具有产能高、塑化效果好等特点。风环及模具采用先进的加工工艺，表面光洁度高，制品薄膜均匀度好、透明度好。
Main uses:
In order to meet customer's requirements for high quality film blowing equipment, this unit adopts advanced technologies such as new barrel screw, precision steady flow air ring, new three-layer co-extrusion internal cooling die, horizontal traction rotating system, IBC internal cooling system, automatic center/surface/clearance winder, computer centralized control system and so on, and has been produced. High efficiency, high quality products, high degree of automation, more convenient operation and other advantages, can be widely used in high-grade self-adhesive film, high transparent packaging film production, to create objective economic benefits for you.
Performance characteristics:
Performance characteristics:
1. Our company absorbs foreign advanced technology and independently develops a new generation of automatic multi-functional rewinder. It has three rewinding modes: surface friction rewinding, surface center rewinding and center active rewinding. It is fully adapted to all kinds of plastic film rewinding, and has the functions of flying knife cutting, automatic rewinding, unwinding and automatic length counting.
2.The PLC control system can work under various coiling modes, automatically complete cutting, coiling and unwinding operations, greatly reducing labor intensity and production costs, and improving productivity.The man-machine interface of the system, touch screen display and set various parameters: temperature, screw speed, tension, winding pressure, film diameter, length, etc., higher degree of automation.
3.independent research and development of new machine screw has the characteristics of high productivity and good plasticizing effect. Wind rings and molds adopt advanced processing technology, high surface finish, good film uniformity and transparency.
三、主要技术参数：
| 型号 TYPE |
YF-1400型 | YF-1600型 | YF-1800型 | YF-2200型 | |
| 适用原料 Applicable materials |
HDPE／LDPE／LLDPE／EVA | ||||
| 螺杆直径 Screw diameter（mm） |
Ø50/Ø60/Ø50 | Ø55/Ø65/ Ø55 |
Ø60/Ø70/Ø60 | Ø70/Ø85/ Ø70 |
|
| 螺杆长劲比 Screw length ratio |
1:30 | 1:30 | 1:30 | 1:30 | |
| 主电机功率 Main motor power（kw） |
18.5/30/ 18.5 |
22/37/22 | 30/45/30 | 37/55/37 | |
| 最高挤出量 Maximum extrusion（kg/h） |
180kg/h | 220kg/h | 260kg/h | 360kg/h | |
| 产品宽度 Product width（mm） |
1200mm | 1400mm | 1600mm | 2000mm | |
| 产品厚度 Product thickness（mm） |
0.02-0.20 | 0.02-0.20 | 0.02-0.20 | 0.02-0.20 | |
| 风环结构形式 | 双风口风环 | ||||
| 螺杆转速 | 10-100r/min | ||||
| 旋转牵引形式 | 水平±360º旋转 | ||||
| 总功率 |
120kw |
140kw |
160kw |
200kw |
|
| 收卷方式 | 全自动中心/表面/间隙收卷 |
||||
| 外形尺寸(m) (长*宽*高) |
9.5×5×9m | 10×5.5×9.5m | 10×6×10.5m | 10.5×7×11m | |
由于不断研究改进，我司保留改变设计之权利。
Due to continuous improvement, we reserve the right to change design.
